Description
Clip-on Power for Starlink Mini
The SINVYX 158Wh battery attaches directly to the Starlink Mini body and supplies 15–21V DC through a dedicated connection. Choose this capacity for remote work and van travel. The Starlink Mini terminal is not included.
Specifications
| Rated capacity | 158Wh |
|---|---|
| DC output | 15–21V; 4A continuous / 6A peak |
| Battery weight | 1.1 kg |
| Cells | EVE 21700 NMC |
| Weather protection | IP65 with port covers closed; not for submersion |
| Operating temperature | -20°C to 60°C (-4°F to 140°F); follow the manual for charging limits |
| Compatible solar input | Up to 100W, 20–40V PV; confirm panel compatibility |
| Charging reference | Approximately 5 hours with the recommended 25.2V / 3A charger; actual time varies |

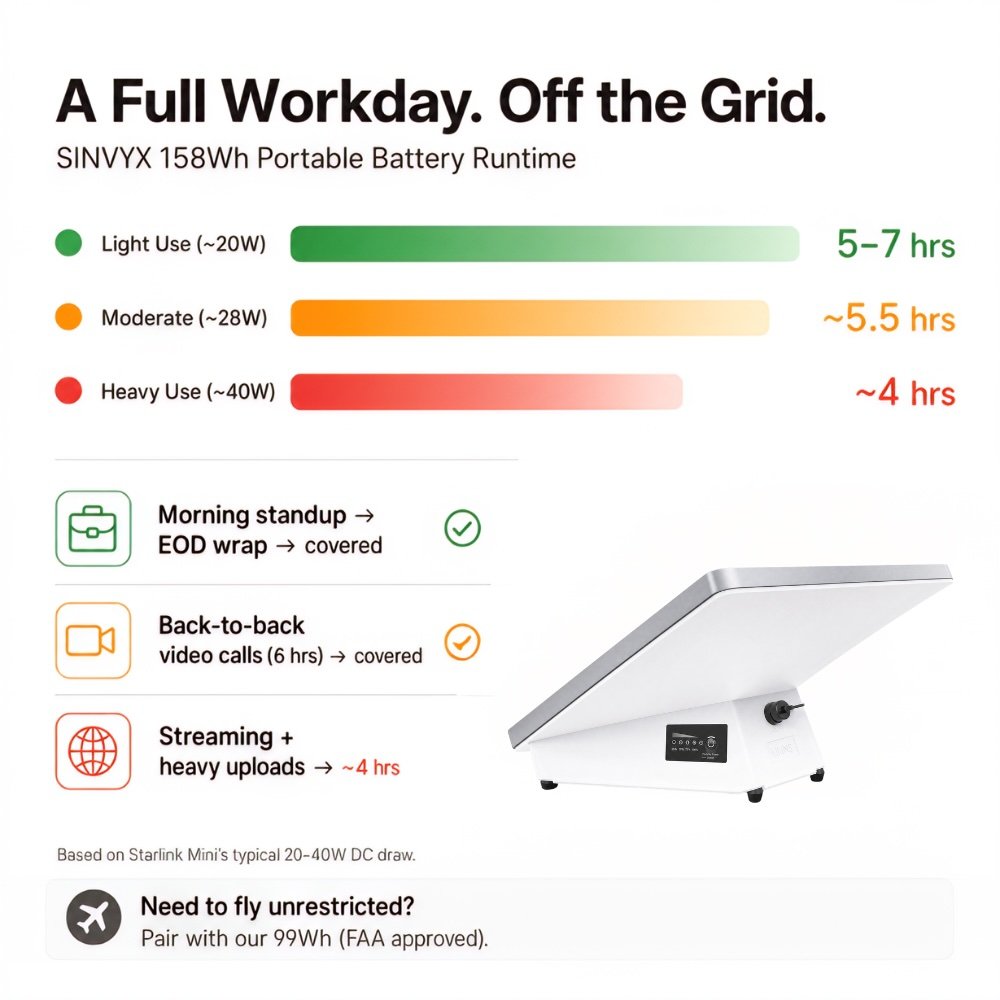

Runtime and Capacity Selection
A planning estimate for the 158Wh model is approximately 3.4–5.4 hours under the assumptions below. This is a calculation, not a runtime guarantee.
Planning estimates use rated capacity × 85% assumed usable energy ÷ 25–40W load. The 85% figure is a calculation assumption, not a measured battery efficiency. Starlink lists average Mini consumption of 25–40W. Actual runtime varies with settings, signal conditions, temperature and battery age. See Starlink Mini specifications.
Compare all SINVYX Starlink Mini battery capacities before choosing.
Charging and Installation
Use the specified charger or a compatible solar setup within the input range. Check the charger, connectors and panel output before connecting. Do not assume that any Starlink adapter or USB-C power supply can charge this battery.
- Follow the product manual to check battery level and turn the battery on.

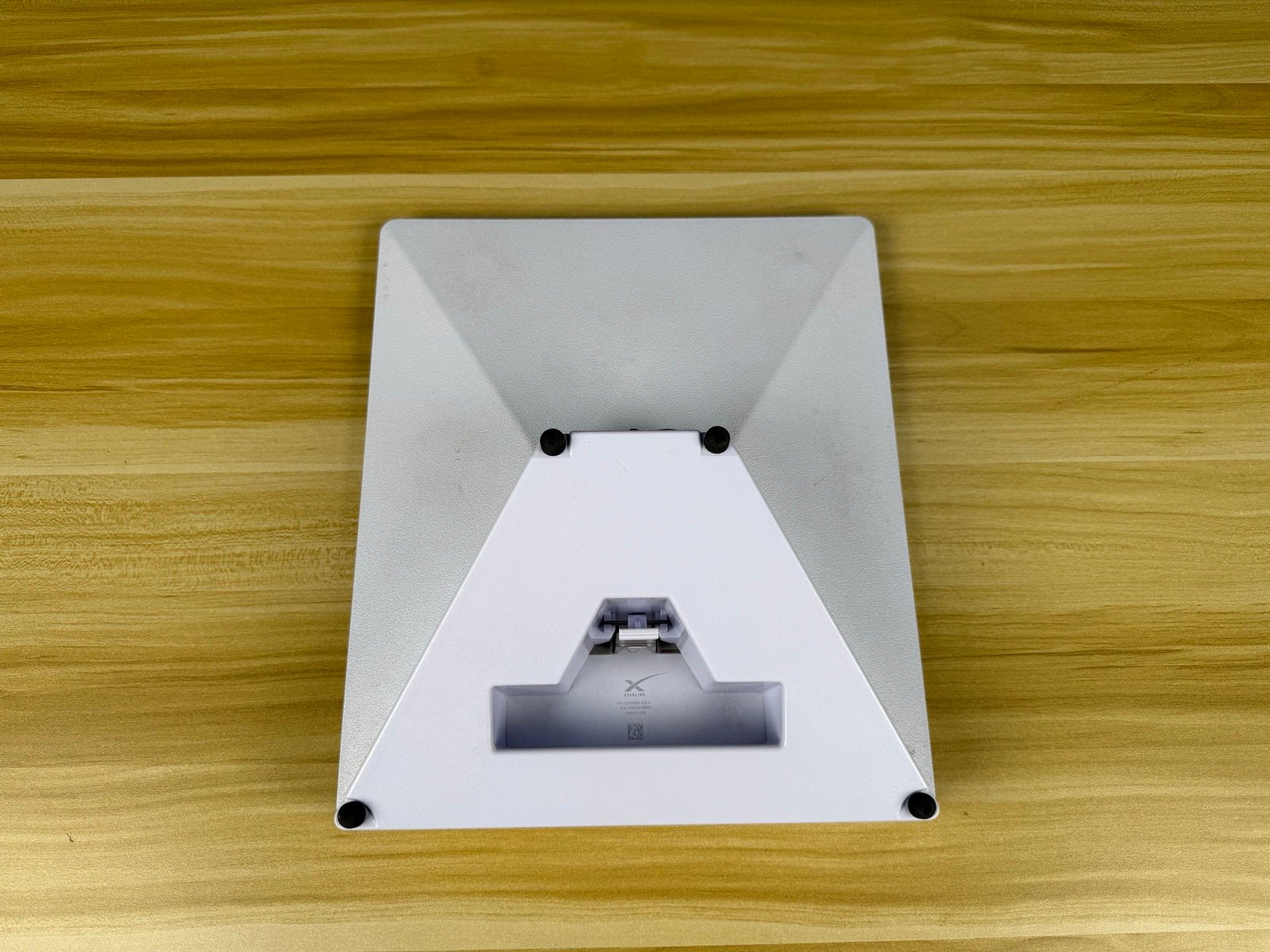

- Align the mounting latch and dedicated connection with Starlink Mini, then slide the battery into place.
- Place the setup on a stable surface. Close unused port covers.
- Use the release clip to remove the battery before packing.
Battery Documents and Flight Planning
Request the specifications and available UN38.3 transport test information, MSDS, FCC documentation and UL2743 test report for this model. Ask us to confirm the applicable documents for your destination. A UL2743 test report is not a UL Listed claim; transport documentation does not provide airline passenger approval.
The 158Wh capacity falls in the FAA 101–160Wh range, which requires airline approval. Request approval before travel and carry it in your cabin baggage with terminals protected. Airlines may apply additional limits. See FAA passenger battery guidance.
Warranty and Delivery
SINVYX products have an 18-month warranty from the date of delivery for covered defects in materials and workmanship. Read the Warranty Policy for coverage and how to make a claim.
Retail shipping availability, processing and estimated delivery times follow our Shipping Policy. Shipping costs, if any, are shown at checkout. Wholesale and OEM delivery terms are confirmed in your quotation or contract.
Wholesale and OEM Orders
Buying for resale or customer installations? Standard-product trial orders start at 12 units, with mixed 99Wh, 158Wh and 200Wh capacities available. Get Starlink Mini battery wholesale and OEM pricing. Customization and delivery schedules are confirmed in your quotation.
